Hot Water Spray Retort

Steam Air Retort * Steam Air Sterilization * Hot Water Spray Retort * Water Cascading-Hot water Spray Retort * Full Water Immersion Retort
home / Hot Water Spray Retort

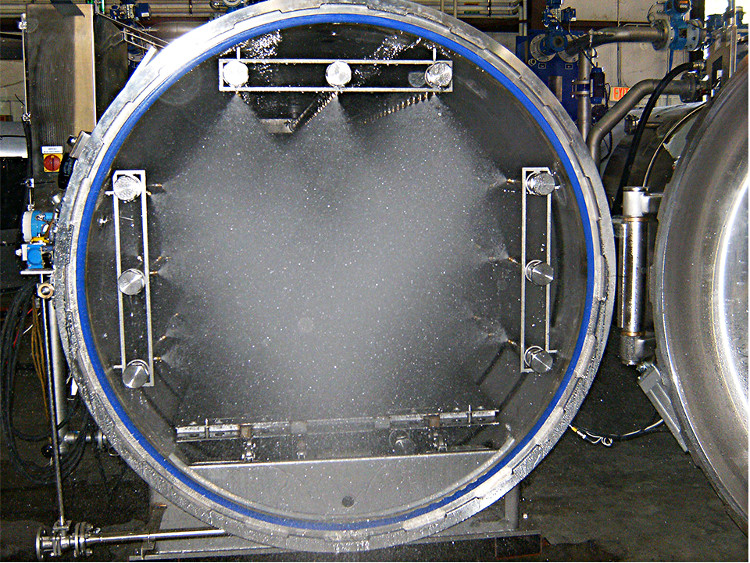

We can provide you with the premium hot water spray retorts. The batch Hot water Spray Retort heated with water under pressure are perfect for beverages and other food industries.

In this Hot Water Spray Retort Steam boils the water in a separate tank and make it 121 C inside the food / bottles centre area. Since it is indirect methods of making the product sterilize. It will give good texture and taste. Boiler will remain active during making water 121 C and then product at 121 C. This is based on Study by US institute of Thermal process in 1995

1.The Hot Water Spray Retorts allow for pasteurization with minimum process water, direct heating and indirect cooling. These will be no touch between cooling water and process water, successfully avoiding secondary contamination.
2.The Hot Water Spray Retorts also boast perfect pressure control. During the whole processing procedure, the pressure is constantly adjusted to adapt to the changing pressure inside product package. They ideally keep package deformation to a minimum, well suitable for Gas packaging and two piece can packaging.
3.The noise of Hot Water rain retorts is extremely low creating a quiet and comfortable working environment.
4.The advanced and suitable DELTA PLC control system ensures our clients are able to timely locate replacement parts of the batch retorts across the world reducing down time.
5.The Hot Water Spray Retort / Sterilization equipment makes it convenient to configure automatic corollary equipment for unmanned food workshops in the future.
6.The whole sterilization process adopts PLC fully automatic linearity control via the PLC control, the temperature difference of thermal distribution is limited within ± 0.5C. The Hot Water Spray Retort Steriliser allow for multi-stage heating, effectively saving energy. It also has an additional F value recorder (optimal) capable of storing 100 scheduled processes

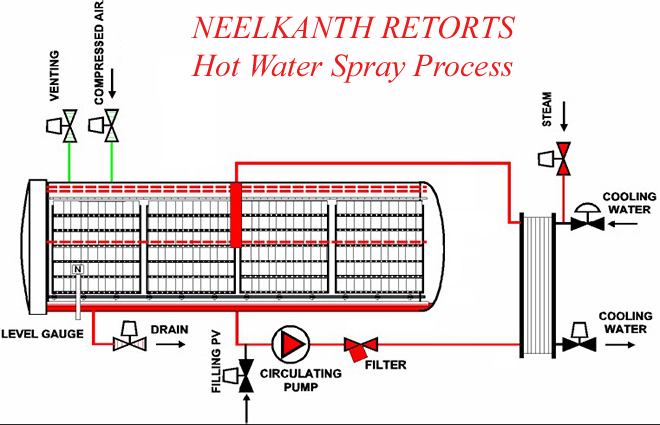

Process Flow Chart

The Hot Water Spray Retorts are well application for a wide range of thermal resistant packaging materials.

1.Plastic Container : PP Bottles, HDPE Bottles.
2.Soft Pouch: Aluminium foil pouch, transparent pouch, vacuum pouch, high temperature retort pouch.
3.Metal Container: Tin Can, Aluminium Can
4.Glass Bottles
